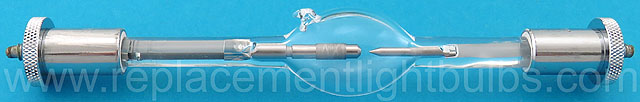

Ushio UXL-300D-0 300W Xenon Short Arc Light Bulb Replacement Lamp
Ushio UXL-300D-0 300W Xenon Short Arc Light Bulb Replacement Lamp

4 Remaining In Stock

Ushio $300.00 Each

Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.

Wattage: 300W
Amperage: 15A
Current Control Range: 14-16A
Voltage: 20V ±2V
Arc Gap: 2.6mm
Average Rated Life: 1000 Hours
Lumens: 9,900
Technology: Xenon Short Arc
Burn Position: Vertical ±15°, Horizontal ±15°, V15/H15
Forced Cooling Required
Typical Use: Searchlight, Followspot, Projection, Spectroscopic Analysis, Microscopy, Solar Simulator, Boroscopy, Machine Vision

Ushio UXL-300D-0 Graphic

D1 - 25mm Maximum
D2 - 13mm
D3 - 19mm
D1 - M5P0.9
L1 - 175mm
L2 - 150mm
L3 - 65mm

Alternate Part Numbers: Ushio 5000343, UXL300D0, XE 300W, M5, Ozone Free, 209129, 209080, 209082, 209073

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
