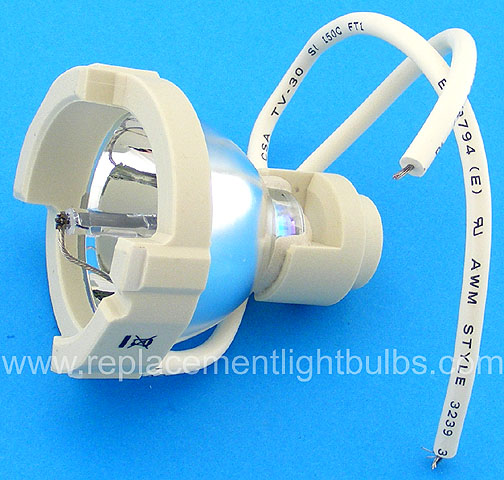

Osram XBO R 101W/45 C DC Fiber Optic Light Source
Osram XBO R 101W/45 C DC Fiber Optic Light Source, Replacement Lamp

*Osram $375.00 Each

*20 Remaining In Stock

Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.

Wattage: 101W, 101 Watt Watts, 85W-115W
Voltage: 13V, 12V to 14V
Amperage: 7A, 7A to 7.4A
Glass: Reflector, KO176
Base: Wire Terminals without Connectors
Average Life: 500 Hours When Burned Horizontally
Maximum Overall Length: 83mm
Maximum Overall Diameter: 64mm or 2.52"
Color Rendering Index: CRI 98
Color Temperature: 6000K, 6000°K
Maximum Base Temperature: 230°C
Burn Position: P20, Horizontal ±20°
Typical Working Distance: 45mm
Luminous Area: .4mm Wide, .09mm High
Short Arc
Hot Restrike, Restart
DC Current
Xenon Gas
OFR Ozone Free
Forced Air Cooling Required
MSDS
Troubleshooting
Safety and Handling

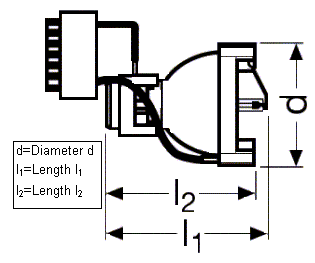

69183 Graphic
D = 64mm, L-1 = 83mm, L-2 = 75mm

Alternate Part Number: XBOR101W45COFR, XBO R 100 W/45C OFR, 69190, HBO R 101W/45 OFR, Luxtec 9100, 2540200004, P15, XL-0101/05, UPC 046135691904, 100W, 100 Watt, 4050300388458, Xenon Short Arc

Equipment that uses this lamp: Lightguide, Boroscopy, Fiber Optic, Minimal Invasive Surgery, Endoscopy, UV-A Adhesive Curing, UVA Dental Curing, Luxtec 9100 Fiber Optic Light Source, Smith & Nephew Dyonics 100W Xenon Light Source, Images, 900-0802, Pilling 521311, Carley CL70081

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
