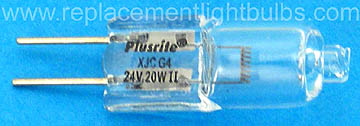

Plusrite 5119 XJC20/CL/G4/24 XJC G4 24V 20W Light Bulb Replacement Lamp
Plusrite 5119 XJC20/CL/G4/24 24V 20W G4 Light Bulb Replacement Lamp

Discontinued - No Remaining Stock - Recommended Substitute 64435

Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.

20T3Q/UVS/CL/24V
General Lighting, Clear, Low Voltage Display, Halogen
Voltage: 24V, 24 Volt. 24 Volts
Wattage: 20W, 20 Watt, 20 Watts
 Base: G-4 Bi-Pin, Sub-Miniature 2-Pins; round .7mm; 4mm apart
Maximum Overall Length: 31mm, 1.2"
Maximum Overall Diameter: 9.5mm
Light Center Length: LCL 22mm, .87"
Glass Shape: T-3
Amperage: .83A
Color Temperature: 3000K, 3000°K
Filament: Transversal
Lumens: 320
Average Life: Osram 1000 Hours
UV Stop

Cross References: Sylvania NAED 58662, Anti-UV, Halogen Clear Glass, N90110 9003-0923, Halostar UVS, HSG/TR/UB, 64435U, 13091, M88, JCD24V20WH20, 33551, RJ2024, 64, Q20T3/CL/24, Ushio 1000844, JC24V-20W/G4

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
