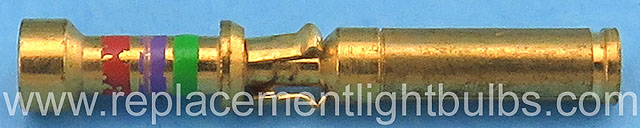

MS17804-16-20 M39029/35-275 Gold Electrical Contact
MS17804-16-20 M39029/35-275 Gold Electrical Contact

1 Remaining In Stock


Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.

Length: .757" to .771"
Diameter: .135"
Design: Copper Alloy with Gold Plated Body
Code Colors: Red, Violet, Green
Terminal: 1 Crimp Axially at One End
Mounting Method: .25" to .314" Pin Length, .0645" Diameter
Cable Entrance Diameter: .044"
Amperage Rating: 7.5A

Alternate Part Numbers: NSN 5999-00-052-2301, MS178041620, MS17804-16-20, MSC2500S6A20, MSU78041620, MSU7804-16-20, M178041620, M17804-16-20, M39029/35-16-20, M39029/35-275, M39029351620, M3902935275, NE2725, NE27-25, SAE-AS39029/35 , SAEAS3902935, R15422050, R1542-20-50, R154220R50, R1542-20R-50, RC2500S6A2050, RC2500S6A20-50, MILC23216, MIL-C-23216, MIL-C-39029/35A, MILC3902935A, 1001022S, 100-1022S, 100R0984S95, 10129119, 1020S95, 1080H38H61, 1080H48PC4, 1080H49PC6, 1080H67REVJPC5, 1081H59PC6, 1081H86PC3, 16547614, 1654761-4, 2049020006, 204902-0006, 3522 500 15225, 352250015225, 7903061-00, 7228368P006, 7228368PT6, 00-052-2301, 5999000522301, 000522301, 790306100

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
