ELC 24V 250W MR16 Replacement Light Bulb
ELC24V250W
A1/25964653

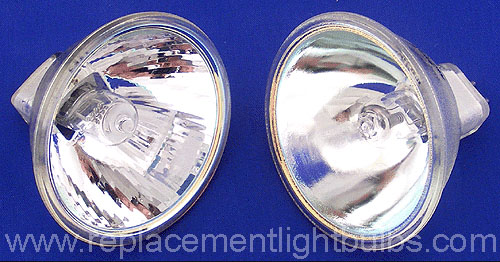

Left: Faceted Reflector, Right: Smooth Reflector

Osram $7.38 Each

Philips $11.61 Each

GE $7.50 Each

Donar $5.40 Each

Lamps ordered will be shipped the next business day by USPS Priority Mail or UPS. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart above or call 336-882-2852 or 800-692-3051. Click to go to our Home Page, View Cart and to find Shipping Information.

These bulbs look like little satellite dishes with parabollic reflectors and are heavily used in high powered moonflower and gobo projecting light effects.

Average Rated Life: 50 Hours, About 500 Hours at 19.7V
Voltage: 24V, 24 Volt, 24 Volts
Amperage: 10.42A
Wattage: 250W, 250 Watt, 250 Watts
Glass Shape: MR-16. MR16
Filament: CC-6
Base: GX5.3; also known as: Miniature 2-pins; round
Maximum Overall Length: 1.75 Inches
Burn Position: Universal, Burn lamp in ANY position.
Color Temperature: 3400° Kelvin
Lumens: 800

Osram and Donar: Reflector Smooth Mirrored
GE and Philips: Reflector Faceted
The Osram and Donar smooth reflectors are ideal for DJ lighting.
The GE and Philips lamps with faceted reflectors are ideal for movie projection, photo processing, enlarging and fiber optic swimming pool applications.

Replaces the 22.5V, 250W 471-029

We have a small supply of these lamps in our bargain price section.
For a description of bargain priced lamps click here.
To check price and availability of bargain priced lamps click here.

If you are experiencing a declining lamp life you may need to replace the socket. Common sockets for this lamp are the QLV-1 socket or the QCX-34 socket. If the socket contacts are pitted or corroded it will shorten lamp life. Under normal humidity you can expect to use this socket for about 2,000 hours.

Cross References: 64653HLX, 54840, 64653, 02400, 1000318, 13163, 13631, 143415, 1434BLV, 1480, 23103-5, 37462, 471-029, 5132-13, 52250, 54163, 54840, 943807, 99-X413, 99X413, A1-259, A1/259, 23103-5, 231035, ELC/FA, JCR-24V-250W, JCR-24V-250W/FA, JCR-24V250W, JCR24V250W, JCR24V250W/G2, MB-14800, THE-4, THE4, JER24V-250W, JER-0250, PF-220,  00043168374620,  043168993142,  6240010490969,  043168374620, 17159, #107510, 410904, 24V250W, FC-MR16-P, #8245, 170 158, 54128-0, A 326 989 00 13, FS5C, DE1748, DeVere part #1748, EYE, Maplin GT28

The ELC is a dimmer light substitute for the PF220/1, PF-220/1, P/N 20100200. You can order the PF220/1 here.

Acme's

Mini-Scanner LEO M H - 6 3 0, MH-630

AGFA

2.0, 2.2, 2.3

American DJ

Colorscope, Warp, Fascinator, Fiesta, Max, Mighty Scan, Rainbow-250, Rampage, Spin Out, Swival Beam II, Utopia 250S
Goboflex - Deco 250

American Products

Fiberworks P/N 20100200
UI Model 20100600

Apollo

QL100

Bauer

P7L / P7MS, P7TS

Bell and Howell Company

2580, 2580A, 2582A, 2585A, 2585B, 2592A, 2592B
Autoload, 3592
3885 Filmosound
Autoload 2592B,
Filmosound 1680G, 1692B, 1693B, 1695B, 1698B
Filmosound 3592
TQ3 Specialist

Bolex

510 / 521

Chauvet

Navigator Plus DJ Lighting Club Lights DMX
CJ Max
Colorscope
CH-605

Chromega

Chromega D Dichroic, Chromega D Dichroic II and Chromega E Dichroic lamphouse

Copal

Devere

Enlarger Bulbs 108AF,203,500,507,508H,1085 810H, Color Head
250W, 500W, and 2000W Dichromat, Difcon and Varicontrast lamphouses as fitted to the Model 203, 504, 507, 108S, 810H, and 1010XLH enlargers.
De Vere - 108AV, 203, 500 / 504 / 507 / 508H, 810H, 1085, Color Head

Dynamite Effects Lighting

DMX Scanners, Mini Barrel, Club Scanner

Durst

Enlarger 402/L138D,403/V184,D184 AC650,L900/CLS 500,CLS-450 Colorhead
AC-650, D-184, L900/CLS500, L1200/CLS450 & 500, Pro
Durst Laborator 1200 with Color Head CLS 501

Easy Scan

SRL-105

Eiki International Incorporated

ENT0, ENT1, ENT2, ENT3, ESL1, ESL2, NT0, NT1, NT2, NT3, SL0, SL1, SNT0, SNT1, SNT2, SSL-0B, SSL-OL, SSL-0L
SSL-O/3580
3580 / 3585 / 3592, ENT-O/3592, SNT-O/3585, SSL-O/3580
ESL2

Elmo

16AL, 16AL-M-O, 16AL-OPT, 16ALR, 16AM, 16AO, 16CL, 16CL-M-O, 16CL-OPT, 16CL-TC, 16CM, 16CO, 16DDS, 16TC
16A / AA / AAR / AC / AL / AR, 16-CL / 16CLDSS / 16F / 16FR / 16FS, 16CL-M/O

FiberStar

Fiber Optics, Fiberstars, 2004-AS, 2008
FiberWorks Photon Generator
Fiberstars HI-110, H1-110, HI110
Hayward Supervision Box
Teledyne PH1000PH Box
American Photon Generator
Fiberstars 250, FS3 & FS4 Illuminators
Fiberstars HI-111, H1-111, HI111, Fiber Star H1111
Fiberstars 2000
FS-S Illuminators
19.7V 183W, 190W, 220W, 200W, 202W
Illuminator-FS250
2004 / 2004-AS Series Illuminators - Quartz Halogen
Fiberstars - 201
FS-FIB-250EG
FS4C

Forox

Dichro Color Head

Forway Industries Incorporated

16CL-TC

Fotar

Enlarger-FT405, FT507,FT1010 -All Fotar Brand Light Sources)

Gobostar

CH315

Gretag

Hayward Superision International

SV-25T Series

Helicopter

SRL-308

HK

Enlarger Models-All

Hokushin

SC10, SC10S, SC11

Kodak

HR 500 Plus & HR Universal Film Scanners

Kuda

I250 I-250 1-250
LE163 Gobo Star
MAGIC SCAN SRL-306
Mightyscan
Miniature Corausel SRL-305
Mojo Scan 1

Martin

Acrobat, CX-2, EGO-1 / EGO-2, Juggler, MX-1, Raptor, T-Rex, MagicMoon, Rainbow, Ministar, SuperMoon, Destroyer, Punisher
MX1-MARTIN Effect Light, Scanner, 90140100

Noritsu

EL-512, system II, 801, 802, QSS 1401, 501, Delta
801 / 802, EL-512

Novascan

Gobo Scanner Light Effect DMX 512 Gobo Scanner X-1 NovaScan DMX Intelligent DJ Light

Odyssey

FX-16 16 Gobos, multicolor, multibeam moonflower effect
Li501 CYBORG DJ Stage Lighting
Le610 Luckystar DJ Lighting Effect
Flowmotion DJ light

Omega

D5-XL, Super Chromega D,E,F, D5 dichro Dichroic Enlarger 8x10 8 x 10 18x24 18 x 24 Model F
5 x 7 5x7 13x18 13 x 18 Model E
4 x 5 4x5 9x12 9 x 12 Model D

Optima Lighting

Mojo Scan-1X / 2X / 3X, Mojo Spin Master-1 / 2 / 3, Mojo Color, Mojo Moon II / III, Mojo Ray

Ozscan

SRL-307

Pavelle

402 Colorhead

Pentair

Fiberoptic Pool Light

PSL

Rolling Scan

Pyramid

SRL-488

Rangertone/Hokushin

SC10, SC210, X310

Revolver

SRL-485
Rotating Gobo 4 SRL-326

Schultz Dental

Elce Lux

Simmon Omega

Automega D, E, F Chromega,Dichroic,Super
D5-XL, Super Chromega Dichroic D/E/F

Starrett Sigma

HB400

Startec

250

Super Vision Tower

SVH24

Vision Engineering

Lynx Microscope
Lynx Stereo Dynascope

Weil Dental

Elcelux

Whirl

Whirl 250

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
