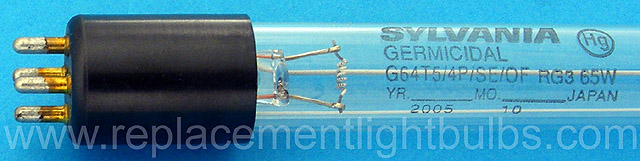

Sylvania G64T5/4P/SE 65W Germicidal UV-C Lamp Replacement Light Bulb
G64T5/4P/SE 65W Germicidal UV-C Lamp Replacement Light Bulb, Lamp

About 61.5" Including Pins

*$35.00 Each

*Discontinued - 7 Remaining In Stock

Germicidal Lamp Handling Warning

Lamps ordered will be shipped the next business day by USPS Priority Mail or UPS. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart above or call 336-882-2852 or 800-692-3051. Click to go to our Home Page, View Cart and to find Shipping Information.

Wattage: 65W, 65 Watt Watts
Voltage: 250V
Amperage: .425A, 425mA
Glass: T-5, T5 Clear, UV Transmitting Glass
Base: G10Q, 4 Pin, Single Ended
UV Emission: 254nm, Typical Use 253.7nm, Nanometer Wavelength
UVC Output: 25W
Irradiance: 200 W
Maximum Overall Length: 64"
Sample Measured Length Including Pins: 61.375"
Face to Face Length Excluding Pins: 61.16"
Radiation Length: 58.56"
Average Rated Life: 9,000 Hours
Ozone Free-Ozoneless
Mercury Form: Hg 8mg Amalgam

Lamp emits UV rays of 254nm and can kill most germs and microorganisms. Emits no ozone.

If you replace the lamp and it does not work then most likely you need a new starter. Since starters are inexpensive and shipping is relatively expensive it my be a good idea to see what starter your unit uses, if any as sometimes the starting is a function of the ballast, and add a starter or two to your order. Not all fixtures use a starter. Sometimes the start function is built into the ballast. A ballast is more expensive and harder to find.

Alternate Part Numbers: Sylvania 23386, G64T5/4P/SE/OF, GE 29504, Eiko 00225, G64T5L/4P, Ushio 3000351, 3000423, G64T5L/4P, LightTech LTC64TSE, Philips TUV64T5/4P/SE, 642325, 8711500642325, 058089, Philiips 362178, 36217-8, G64T5/L/4P/SE, Sankyo Denki, GPH1554T5/4P

Germicidal lamps are clear with special UV transmitting glass. For use in sterilizers and air and water purifiers. This is an ultraviolet C (253.7 nm wavelength) bulb for use in sterilization, water and air purification and surface disinfection. Used in the Forming and Disinfection of Contact Lenses. Used in UV Sterilizers for Fish Aquariums and Ponds. Fixed wavelength spectrophotometer detector. Germicidal lamps allow 253.7nm UV-C radiation from the mercury discharge to pass through the glass thus penetrating and inactivating the DNA of most micro-organisms.

Warning: Avoid direct exposure of eyes and skin under germicidal lamps. To prevent possible serious injury, eyes and skin should not be exposed to direct or reflected ultraviolet power emitted by this lamp. This lamp is in Risk Group 3 per ANSI/IESNA RP-27.3-96. Adequate protection should be provided by clothing, gloves, opaque materials, and ordinary window glass. Although this lamp will operate in standard fluorescent fixtures, it should not be used for general lighting applications.

Go to our Germicidal Safety Sheet for more lamp handling details.

Note: This lamp contains Mercury. Manage in accord with disposal laws. See www.lamprecycle.org.

Germicidal fluorescent light bulbs are most often used with specialty air and water purification systems in hospitals, food handling, and HVAC. Applications include food processing, medical facilities, air conditioning systems, pharmaceutical production, clean room, drinking water, photochemistry, phototherapy, dermatology, wastewater, laboratory/research, and other sterilization and disinfection needs. For use only in fixtures and equipment designed for germicidal lamps.

American Air & Water Inc.

L-020461

American Ultraviolet, Inc.

TTG-64-4P

Atlantic Ultraviolet Corporation

TM64
TM64-2

Emperor Aquatics, Inc.

20065 65 Watt Smart UV

Glasco Ultraviolet

8040

Ideal Horizons

42039

Siemens

8040
LP4020
LP4280

Ster-L-Ray

05-1017A-R
G64T5L/4

Sunlight

8040
LP4020
LP4280

Tank Master

TM64
TM64-2

UltraViolet Devices Inc.

07-4006
07-6022

UVDI

07-4006
07-6022

Watertec Enterprise

LS64T5L
UV200A

Wedeco UV Technologies, Inc.

42039

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
