Leviton 70051-1 E26 4kV Pulse Rated 660W 600V Lamp Socket
Leviton 70051-1 E26 4kV Pulse Rated 660W 600V Lamp Socket

Leviton $5.00 Each

Sockets ordered will be shipped the next business day by USPS Priority Mail or UPS. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart above or call 336-882-2852 or 800-692-3051. Click to go to our Home Page, View Cart and to find Shipping Information.

Base Type: E26 Medium Screw, EX26, ANSI C81 Standard Sheet #911
Maximum Voltage: 600V
Maximum Wattage: 660W
Pulse Rated: 4kV
Height: 2.275" or 57.8mm
Width: 1.677" or 42.6mm
Mount: 6-32 Bushings
Shell: Copper Alloy, Nickel Plated Screw Shell and Center Contact with Leaf Spring Under Contact
Wire: 18 AWG (1 Red, 1 Blue) UL Style 3303, 150C 1000V wire, 36" long, stripped 1/2"
UL Recognized Component: E-3810
NOM Certified: 057

For use in down-light applications with the G.E. MXR 32W metal halide lamp.
White glazed porcelain body with special extended design conforms to UL requirements for the live screw shell.
Desinged for metal halide lamps with internal arc tube shield.
Complies with NFPA 70-2005 requirements for open-rated fixtures.

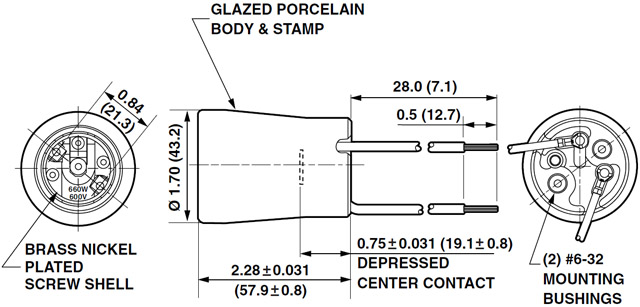

Leviton 70051 Socket Graphic

Alternate Part Numbers: HID Pulse Rated, 4kV, 4 K. V., 660W-600V, BK, GZ, NPBSS, Bush, 36" 18AWG, 18GA, GTF, 150C, Lightolier, 70051-001, 70051-1, LH0520, Down Light Metal Halide, S70051
