TC-61 250V 75W E17 Intermediate Screw Lamp Socket
TC-61 250V 75W E17 Intermediate Screw Lamp Socket

Tsun Chan $1.50 Each

Sockets ordered will be shipped the next day by USPS Priority Mail or UPS. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart above or call 336-882-2852 or 800-692-3051. Click to go to our Home Page, View Cart and to find Shipping Information.

Maximum Voltage: 250V UL, 300V PSE
Maximum Wattage: 75W
Maximum Amperage: 3A
Maximum Temperature: 250°C
Material: Porcelain Body, Ceramic
Base Type: E17 Intermediate Screw, Aluminum Shell
Brackets: Steel Plated
Wire: 18AWG, 18 Gauge, 105°, 600V, 206504, VW-1, AWM Style 1015, E209277, FT-1
Wire Lead Length: 6"
UL Listed E213754

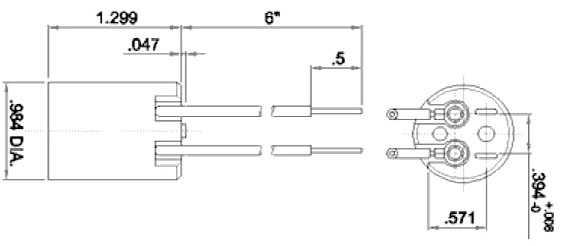

Graphic TC-61

Alternate Part Numbers:  TC61, 57AG, 57AQ
