TP220 G9.5 Lamp Socket
TP220TP-220
G9.5Socket

Discontinued-No Stock Remaining-Possible Substitute TP22

Sockets ordered will be shipped the next day by USPS Priority Mail or UPS. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart above or call 336-882-2852 or 800-692-3051. Click to go to our Home Page, View Cart and to find Shipping Information.

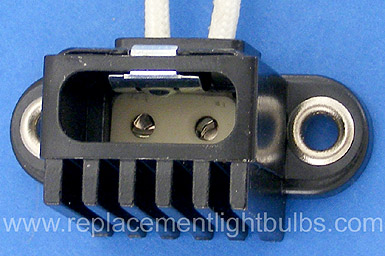

G9.5, G9,5 Lamp Socket with 36 Inch Leads

Lamp Socket for FEL, FEP, BWM, BWN, EHB, EHC, EHD, EHF, EHG, FLK, GLA, GLC, HX400, HX600, HX601, HX602, HX603 and other lamps with G9.5 Base with a maximum voltage of 250V and a maximum wattage of 1000W.

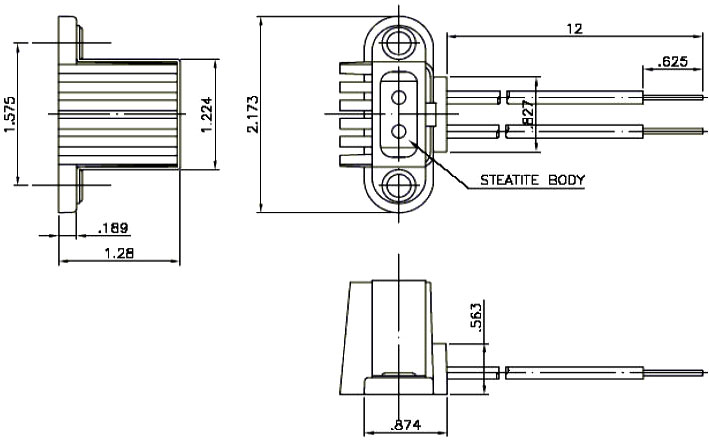

2-pin medium base with .125" pin diameter and .375" center of pin to center of pin.

Alternate Part Numbers: TP-220, 36" Leads, F596030, TP220/12, TP220/36, Heat Sync, Heat Sink, 69010, TP220XL

Maximum Voltage: 250 Volts
Maximum Wattage: 1000 Watts
