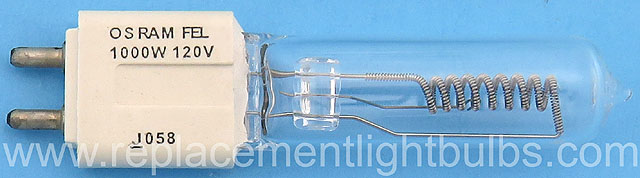

FEL 64743 120V 1000W Light Bulb Replacement Lamp
FEL 64743 120V 1000W Light Bulb Replacement Lamp

Osram $12.08 Each - 69 In Stock

GE $19.81 Each - 6 Remaining In Stock

Donar $6.48 Each - 1,782 Remaining In Stock

Apollo $10.00 Each - 1 Remaining In Stock

Eiko/Wiko $10.00 Each - 7 Remaining In Stock

Philips $12.00 Each - 12 Remaining In Stock

Sylvania $11.00 Each - 16 Remaining In Stock

Strand $10.00 Each - 94 Remaining In Stock

Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.

Watts: 1000W
Volts: 120V
Medium 2-Pin
Socket Base: G9.5
Type: CL Clear
Nominal Lumens: 27,500
Life: 300 Hour
Color Temperature: 3200° Kelvin, 3200K
Type: T6
Filament Type: Compact Coil CC8
Maximum Overall Length: 4"
Single-Ended Quartz Halogen Lamp

For 220-240V Use FEP or TPL

Lower Wattage FEL Equivalents

Lamp Type
Wattage
Color Temperature
LCL
Lumens
Life Hours
FEL
1000W
3200°K
60.3mm
27,500
300
EHF
750W
3300°K
60.3mm
19,000
350
EHG
750W
3000°K
60.3mm
15,400
2000
FLK
575W
3200°K
60.5mm
16,500
300
EHC/EHB
500W
3200°K
60.3mm
13,000
300
EHD
500W
3000°K
60.3mm
10,600
2000

Cross Reference: CP77, Osram 64743, NAED 54570, Y90079, 23054 desc, 880-501, 35-00160, 1205, Q1000/4CL, Q1000T4/CL, 1KWHPL575, bulb8567, 64743/OSRA CP/77, 6983P, 6983-P, 100-055, 176-033, Q1000CL/4CL, JVC120V-1000WBM/XX/US, JVC 120V-1000WBM/XX/US, JTL #2813, GE 88625, Strand 23404 Made by GE, GE 39769, GE 35607, NAED 54570-2, DP Light, 35607

Sockets: TP22, TP220 (Special Note: Donar FEL lamps fit in the TP22 socket perfectly and do not fit in the TP220 socket.)

Agfa Dimax
Agfa-Gevaert, Inc. MSP DIMAX Enlarger, Printer
Altspots - model 1000Q Follow Spots 2-1000w
Altman 360Q Ellipsoidal with gobo slot 6 X 16, 6 X 22, 6 X 12
Altman 360Q Radial, 6x9, 6x12, 6x16, 6x9 Capitol
Altman Lighting Q1000 Follow Spot
Altman 6x12 Axial ERS
ALTMAN 1KL-8 1K-L8 1KL8
ALTMAN 1KL6
ALTMAN 1KL10
ALTMAN Q2040
Altman 803C E-31501 Altspot 1000watts, Quartz, Follow Spotlight 120 Volts A.C. 15 Amps, CAT No. 1000Q, 1000 Q
Altman Altspot follow spot
Berkey Colortran Ellipsoidal 213-055 40-Degree Stage Lights
CCT Starlette 6" Fresnels
Century Lighting 2343-2344
Chimera Lanterns
Colortran Color Spots Follow Spot
Colortran Fixed Focus Ellipsoidal Colortran 10°, Colortran 20°, Colortran 30°, Colortran 40°
Colortran ETC, 5/50 SERIES
Colortran 213-052, 213-062, 213-072, 213-092, 213-102, 213-112, 650-015, 650-025, 650-035, 650-045, 650-055, 650-075, 650-085, 213-162
Colortran Vari-10 TV 100-055
Zoom-Ellipse
Elinchrom Scanlite Digital 1000, 1000C, F/Scanlite
ERS: Strand 6x12, Strand 6x16, Strand 6x9, Strand 2209, Strand 2212, Strand Century 2111
ETC 1VF6-2040, 1VF8-1424
Everlight w/fan
Follw Spot Light UL803C FEL 1000 Watt Quartz E31501, E-31501
JR1k Junior 1200W Followspot
Kliegl Bros. 1550/8, 1551-1555, AIMSLITE, SILHOUETTE
Krypto Spotlight Lamp
L&E AQ61-22, Commander
LANCER 1000
Little Stage Lighting E21, E509
Lowel DP Light System
Lycian Midget Model 1206 Follow Spot
Pacific Grip and Lighting INCANDESCENT OPEN FACE 1K MOLETTE, LOWEL "DP"
Photogenic 910303 CL1200 Models Digilight
Pro Tungsten w/Zoom Reflector
Scanlite 1000 Digital (20995 & 20995C)
Scoop: Scoop
SL-1000Q 1000Q Spot
SP-1000, SP1000
Square Perfect SP1000 soft box kit
Star Light and Magic Quartz Super Spot, The Lancer-1000W Professional Followspot
Strand Century ellipsoidals 6x12 Ellipse w/ iris, 6x16 Ellipse, 8x13 Ellipse, 10x23 Ellipse
Strand Ellipsoidal Reflector
STRAND 2250, 2240, 2230, 2220, 2215, 2204, 2209, 2212 13, 2216/17, 2111/12, 2113/14, 2123/24
Strand Century 2209 6x9, 2212 6x12
STRAND LEKOLITE 6" (old 2206)
Strand Leko 6x16 2220
STRAND, CANTATA 11/26, 18/32, 26/44
Strong Trouperette III
Superlight series Continuious lights.
TIMES SQUARE SUPER SPOT QF1000S FOLLOW SPOTS QF1000 Quartz Super Spot
TIMES SQUARE Q6Z 20º-40º Zoom Ellipsoidal
Times Square Q6E6x, Q6x, Q6V, Q6Z, Q8EPC
Whole-Sky Imager (WSI)

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.

An FEL lamp does fit in the TP-220 socket of a 360Q, but it is not recommended as the 360Q is only rated for 750w. The lamps specified by Altman for pre-super reflector 360Q's are the EHF 750w, the EHG 750w, and the EHD 500w. The new super reflector was designed to be used with an HP600 600w 115v lamp.

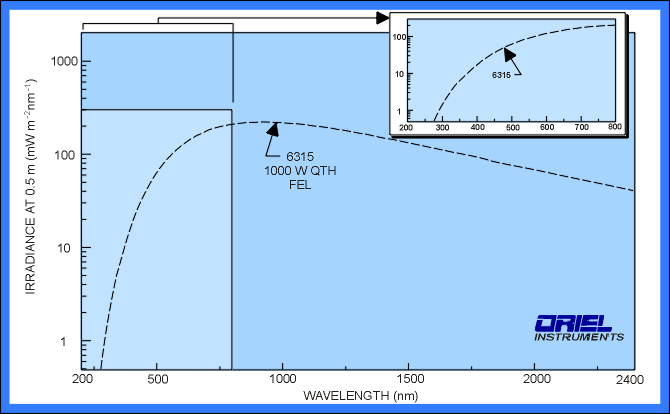

The FEL is commonly used for spectroradiometer calibration.
