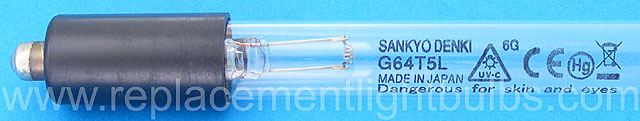

G64T5L 64W Germicidal UV-C Lamp Replacement Light Bulb
Sankyo Denki G64T5L 64W Germicidal UV-C Lamp Replacement Light Bulb

About 61.75" Including Pins

Discontinued - No Remaining Stock - No Recommended Substitute

Germicidal Lamp Handling Warning

Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.

Wattage: 64W, 64 Watt Watts
Voltage: 250V
Amperage: .425A
Glass: T-5, T5 Clear, UV Transmitting Glass
Base: Single 7.9mm Pin
UV Emission: 254nm, Typical Use 253.7nm, Nanometer Wavelength
UVC Output: 25W
Sample Measured Length Including Pins: 61-3/4"
Sample Measured Length Excluding Pins: 61-1/8"
Average Rated Life: 9,000 Hours
Ozone Free-Ozoneless
Mercury Form: Hg 8mg Amalgam

Lamp emits UV rays of 254nm and can kill most germs and microorganisms. Emits no ozone.

If you replace the lamp and it does not work then most likely you need a new starter. Since starters are inexpensive and shipping is relatively expensive it my be a good idea to see what starter your unit uses, if any as sometimes the starting is a function of the ballast, and add a starter or two to your order. Not all fixtures use a starter. Sometimes the start function is built into the ballast. A ballast is more expensive and harder to find.

Alternate Part Numbers: Eiko 00207, Ushio 3000313, GE 15864, Philips Lighting 292698, 29269-8, TUV 64T5 SP, Ster-L-Ray 05-1338A-R, Sankyo Denki, Hikari, Higuchi, Slimline, G64T5, G64T5/L, G64T5L/SP, G64T5/SP, TUV64T5/SP, G64T5L/CB, G64T5L/SL, GML015, GPH1554T5L/SP, GPH1554T, Damar 04614A, Sylvania 23442, 75W, Westinghouse

Germicidal lamps are clear with special UV transmitting glass. For use in sterilizers and air and water purifiers. This is an ultraviolet C (253.7 nm wavelength) bulb for use in sterilization, water and air purification and surface disinfection. Used in the Forming and Disinfection of Contact Lenses. Used in UV Sterilizers for Fish Aquariums and Ponds. Fixed wavelength spectrophotometer detector. Germicidal lamps allow 253.7nm UV-C radiation from the mercury discharge to pass through the glass thus penetrating and inactivating the DNA of most micro-organisms.

Warning: Avoid direct exposure of eyes and skin under germicidal lamps. To prevent possible serious injury, eyes and skin should not be exposed to direct or reflected ultraviolet power emitted by this lamp. This lamp is in Risk Group 3 per ANSI/IESNA RP-27.3-96. Adequate protection should be provided by clothing, gloves, opaque materials, and ordinary window glass. Although this lamp will operate in standard fluorescent fixtures, it should not be used for general lighting applications.

Go to our Germicidal Safety Sheet for more lamp handling details.

Note: This lamp contains Mercury. Manage in accord with disposal laws. See www.lamprecycle.org.

Germicidal fluorescent light bulbs are most often used with specialty air and water purification systems in hospitals, food handling, and HVAC. Applications include food processing, medical facilities, air conditioning systems, pharmaceutical production, clean room, drinking water, photochemistry, phototherapy, dermatology, wastewater, laboratory/research, and other sterilization and disinfection needs. For use only in fixtures and equipment designed for germicidal lamps.

American Ultraviolet

GML015, TTG-64

Aqua Azul Corporation

L-1-153

Aquafine

3098, 3098LM, 3099, CSL-10R60, CSL-12R60, CSL/60, CSL-8R60 (Mfgd before 2005), RBE/16R, RBE/60, ZCSPL3098

Aqua Treatment Services, Inc.

DWS-130

Baker Company

18025, SG600STD, SG600ULT

CureUV

194088

Evoqua Water Technologies

W2T169649

Glasco UV

1351, L-010460

Ideal Horizons

12006, LMP12006

Infilco Degremont

59623-G42, L58065

Pureflow Inc.

G64V-3098, LMP12018

Safeguard Systems>/ 32899, UVAF110692L, UVAF112602L, UVAF14602L, UVAF16602L, UVAF18602L

SaniLight

D64-1S, D64-2S

Sani-Ray

RRD64-1S, RRD64-2S, RRD64-4S

Schlueter Company

32899, UVAF110692L, UVAF112602L, UVAF14602L, UVAF16602L, UVAF18602L

Siemens / Sunlight

3098, LP4010

Trojan UV

6000080, UV 2000

Ultra Dynamics

1530 UD, 7001-153

Ultraviolet Purification

EP1200, L58065

UV Doctor

1179, UVDRX-1179

UV Superstore

G64V-3098, LMP12006

Wedeco

59623-G42, LMP12018

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
