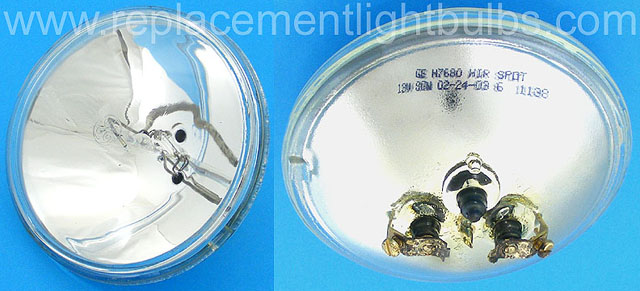

H7680/HIR 13V 80W PAR46 Spot Sealed Beam Lamp Light Bulb
H7680/HIR 13V 80W Spot Sealed Beam Lamp, Replacement Light Bulb

314 Remaining In Stock

GE $19.08 Each

Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.

Wattage: 80W, 80 Watt Watts
Voltage: 13V, 13 Volt Volts
Amperage: 6.15A
Glass: PAR46, PAR 46
Base: Screw Terminals
Beam Spread: Spot, Spotlamp, 6.5°
Filament: C-8, C8
Average Rated Life: 100 hours
ANSI Code: H7680, H7680/HIR
Maximum Overall Diameter: 5.75"/146mm
Maxumim Overall Length: 3.75"/95.2mm
Beam Spread - Horizontal: 6.5° - 10 %
Beam Spread - Vertical: 6.5° - 10 %
Maximum Beam Candlepower: MBCP 275,000
Special Feature: Infrared, HIR

PAR 46         Screw Terminals

Alternate Part Numbers: GE 17894, 17890, 13.0V, Halogen Infrared-Spotlamp, Long Life IR, H7680

For Longer Life Use The H7680X/HIR GE Spot Lamp

This lamp is commonly used in automotive spotlight applications but is sometimes used for hand lanterns and night photography.

Possible substitute for GE 4520 6.6A 13V PAR46 to go in Grimes Model K3 NAF 1171-3

May replace military/naval signal lamp using 13V 6.6A 4529 lamp.

Ford

1998 98 Crown Victoria Vic, Police Car Spotlight

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
