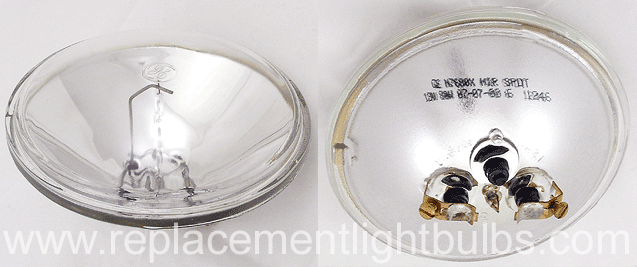

GE H7680X HIR 13V 80W Spot Light Bulb Sealed Beam Lamp
H7680X 13V 80W Spot Light GE

Discontinued -No Remaining Stock - Recommended Substitute H7680

Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.

Wattage: 80W, 80 Watt Watts
Voltage: 13V, 13 Volt Volts
Amperage: 6.15A
Glass: PAR46, PAR 46
Base: Screw Terminals
Beam Spread: Spot, Spotlamp, 6.5°
Filament: C-8, C8
Average Rated Life: 300 hours
ANSI Code: H7680X, H7680-X
Maximum Overall Diameter: 5.75"/146mm
Maxumim Overall Length: 3.75"/95.2mm
Beam Spread - Horizontal: 6.5° - 10 %
Beam Spread - Vertical: 6.5° - 10 %
Maximum Beam Candlepower: MBCP 230,000
Special Feature: Infrared, HIR

PAR 46         Screw Terminals

Alternate Part Numbers: 26694, 26695, 13.0V, Halogen Infrared-Spotlamp, Long Life 300 Hour, IR, H7680X

For Brighter Light Use The H7680 Lamp

This lamp is commonly used in automotive spotlight applications but is sometimes used for hand lanterns and night photography.

Possible substitute for GE 4520 6.6A 13V PAR46 to go in Grimes Model K3 NAF 1171-3. Note one customer said it did not fit in his ring correctly.

May replace military/naval signal lamp using 13V 6.6A 4529 lamp.

Ford

1998 98 Crown Victoria Vic, Police Car Spotlight

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
