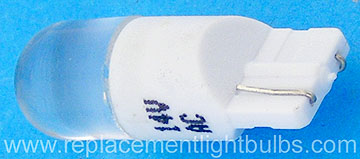

LED 194 14V for 12V AC and DC T3.25 Wedge Base Applications
621 In Stock
Eiko $2.18 Each
For Less Expensive Traditional 194 Go Here
Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.
Voltage: 14V, 14Volt Volts, AC and DC
Wattage: .2W
Amperage: 14mA
MSCP: 9000-12000 MCD at 20mA
Lumens: 2.8
LED Type: Single
Color: White
Color Temperature: High, 5000K+
Lens: Clear
Viewing Angle: 30°
Maximum Overall Length: 1.06" or 26.9mm
Maximum Overall Diameter: .4" or 10mm
Average Rated Life: 30,000 Hours
Glass: T3.25, Tubular
Base: W2.1x9.5d Miniature Wedge
Base Matches: 194, 158, 159, 161, 168, 184, 193, 658, 1210X, 1211X, 1236X, 124, 1250X, 1250X-2, 1250X-5, 1450X, 192, 2821, 2825, 901, 906, 912, 912LL, 915, 917, 918, 921, 921X, 923
Alternate Part Numbers: Eiko 00345, LED-194-W, CEC LM1012WB-W, LM1012WB-WW
Typical Use: Car, Auto, Automobile, Indicator, Brake, CHMSL, Interior, License, Parking, Tail, Trunk, Cargo Area, Turn Signal, Dash, Glove Compartment, Under and Over Cabinet Lights, Instrument, Barricade, Radio
Use in B&H sound projector to light panel
Kelly Dock Door
Rite-Hite Dock Door Systems
Cross reference information is designed to help you find the correct
lamp for your application. We do not verify the accuracy of this
information. You are responsible for ordering the correct lamp and we
make every attempt to help you in that process. We recommend that you
confirm the information with the equipment manufacturer before
ordering.
