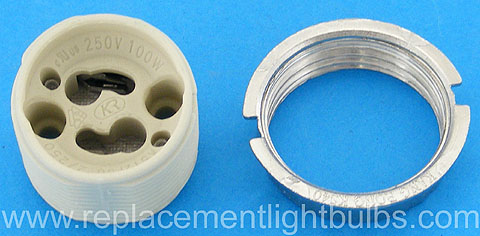

K512PGU GU10 250V 100W 2/250 Lamp Socket
K512PGU GU10 250V 100W 2/250 Lamp Socket

Socket $1.70 Each - 247 In Stock

Metal Ring 73¢ Each - Thousands In Stock

Sockets ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.

Base Type: GU10
Maximum Voltage: 250V
Maximum Wattage: 100W
Body Material: Steatite
Contacts: Stainless Steel
Ring Inside Diameter: 26mm ±2mm
Ring Outside Diameter: 35mm ±2mm
Ring Part Number: RWQT039 or RWQT075
CQC: 2A 250V T250
UL LR: 250V 100W
VDE: 250V 2A T250
Inserted wire should be 6mm long and .5 to 1mm thick.
Note: K540B, K540J, K512P, K512N and K512Q Rings are Interchangeable

Possible Substitute for K512QGU, K512NGU

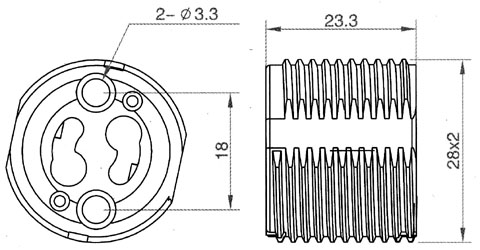

K512PGU 250V 100W Graphic

Alternate Part Numbers: LR, RL, Halogen Lampholder, KR Kang Rong, DVE, Kang Rong, 2/250, K540

Special Note: This ring was also purchased for the RK202A, RK-202A and QX-100, OX-100, DX-100 sockets.
