K540J G9 250V 500W Lamp Socket

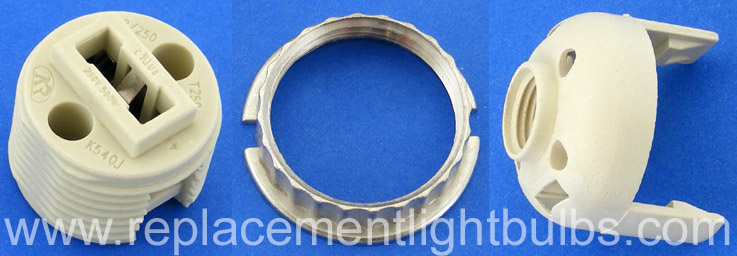

Kang Rong K540J G9 250V 500W Lamp Socket

Socket $2.30 Each - 417 In Stock

Metal Ring 73¢ Each - Thousands In Stock

Cap 75¢ Each - 424 In Stock

Sockets ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.

Base Type: G9, G-9
Maximum Voltage: 250V
Maximum Wattage: 500W
Amperage: 2A
Ring Inside Diameter: 26mm ±2mm
Ring Outside Diameter: 35mm ±2mm
Ring Part Number: RWQT039 or RWQT075
Body Material: Steatite
Contacts: Stainless Steel
Connection: Push in and Lock Wire
UL CSA: 250V 500W
VDE: 250V 2A T250
Inserted wire should be 6mm long and .5 to 1mm thick.
Note: K540B, K540J, K512P, K512N and K512Q Rings are Interchangeable
Center of Hole to Center of Hole Mounting Distance is 17mm

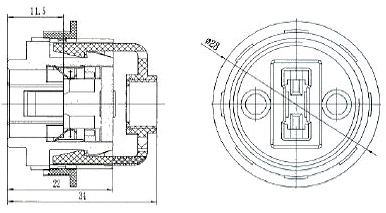

K540J Graphic

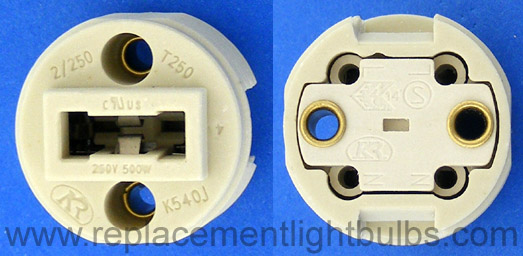

Front and Back K540J 250V 500W G9 Lamp Socket

Alternate Part Numbers: LR, RL, Halogen Lampholder, KR Kang Rong, DVE, Kang Rong, 2/250, K540

Special Note: This ring was also purchased for the RK-202A socket.
