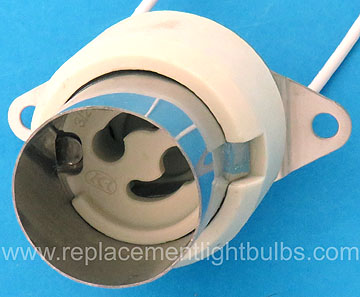

K573A PGZ18 600V 1000W 5kV 3/250 T250 Pulse Rated Lampholder Lamp Socket
K573A PGZ18 600V 1000W 5kV Pulse Rating Lampholder Lamp Socket

10 In Stock

18" 18AWG Wire $10.32 Each

Sockets ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.

Base Type: PGZ18
Maximum Voltage: 600V
Maximum Wattage: 1000W
Starting Pulse Rating:: 5kV
Housing: Steatite
Contacts: Brass
Cover LCP
Rivets: Nickel Plated Brass
18 " 18AWG 250°C PFA
Meets RoHS Requirements
UL: E159368
Alternate Part Numbers: K573A02, T250, 3/250, K573A-18T250
Typical Application: PGZ18 HID Lamp, CDM Elite, TMW 315W

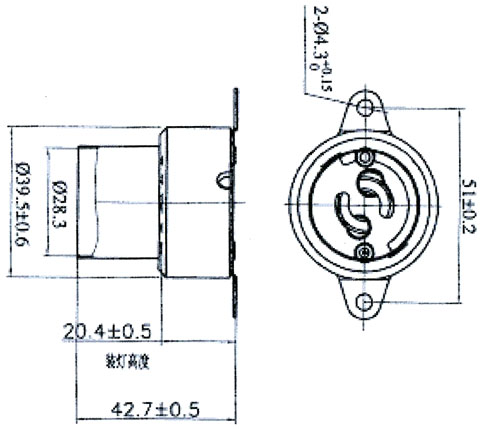

K573A 5kV Graphic
