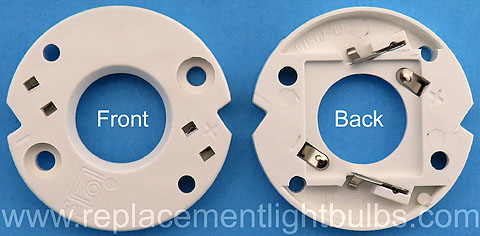

Golo C1816 GL-C1816 COB LED Array Holder for Cree CXA1816 CXB1816 CXA1820 CXB1820 CMB1816 CMB1825 CXA1850
Golo C1816 GL-C1816 COB LED Array Holder for Cree CXA1816 CXB1816 CXA1820 CXB1820 CMB1816 CMB1825 CXA1850

100 In Stock

Golo $1.60 Each

Sockets ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.

Voltage Rating: 72V, 72VDC
Amperage Rating: 3.6A
LED Size: 18x18mm
Screw Size: M3 or #1/8
Wire: 18-22AWG Push-In, .32-.81mm2
Wire Strip Length: 6mm, .24"
Housing Body Material: White PBT, UL 94 V-0
Contacts: Beryllium Copper, Nickel Plated
Holding Clip: Stainless Steel
Maximum Screw Torque: 10 lbs
Wire Pull-Out Force 5 lbs
Temperature Rating: 160°C
RoHS Compliant and UL Approved, E476326, cRUus
Array Series: Cree CXA1816 CXB1816 CXA1820 CXB1820 CMB1816 CMB1825 CXA1850
Alternate Part Numbers: GLC1816, 1816

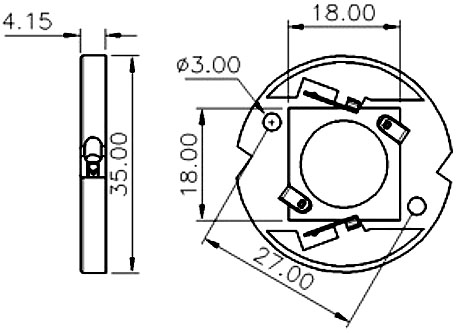

GL-C1816 Graphic
