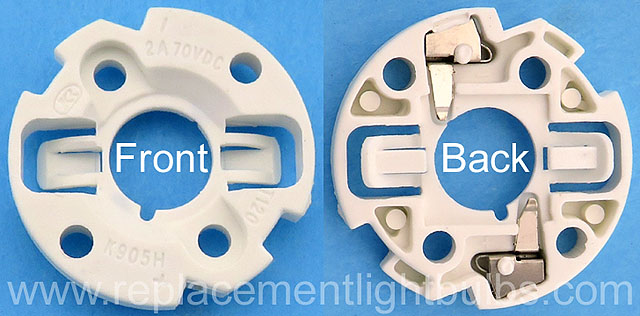

Kang Rong K905H KR 2A 70VDC T120 COB LED Array Holder
100 In Stock
Kang Rong $1.60 Each
Sockets ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.
Voltage Rating: 70V, 70VDC
Amperage Rating: 2A
Wattage: 6W-14W

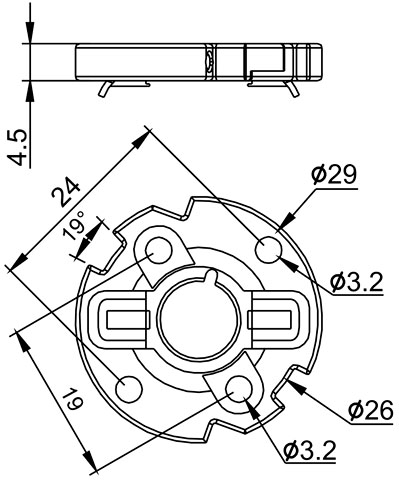

Screw Size: M3 or ST2.9
Wire: 18-22AWG Push-In, .3-.75mm2
Wire Strip Length: 6mm, .24"
Body Material: PBT, UL 94 V-0
Contacts: Copper Alloy, Nickel Plated
Holding Clip: Stainless Steel
Maximum Screw Torque: 10 lbs
Wire Pull-Out Force 5 lbs
Temperature Rating: 120°C
RoHS Compliant and UL Approved, E476326, cRUus
Array Series: Bridgelux V6 or V8, 12.5x12.5MM Chip
Alternate Part Numbers: Kang Rong K509H
